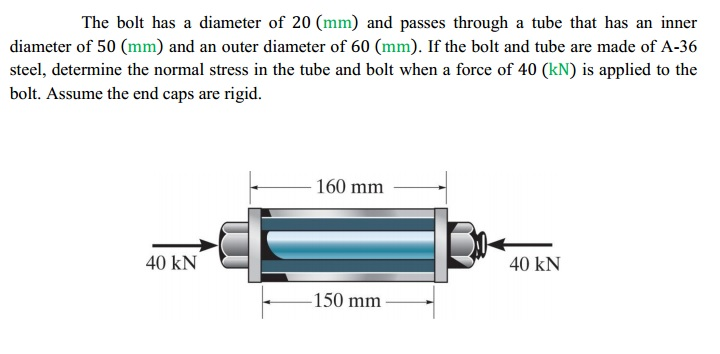

The Bolt Has A Diameter Of 20 Mm And Passes Through A Tube That Has An The bolt has a diameter of 20 mm and passes through a tube that has an inner diameter of 50 mm and an outer diameter of 60 mm. if the bolt and tube are made of a 36 steel, determine the normal stress in the tube and bolt when a force of 40 kn is applied to the bolt. assume the end caps are rigid. your solution’s ready to go!. Find step by step engineering solutions and the answer to the textbook question the bolt ab has a diameter of 20 mm and passes through a sleeve that has an inner diameter of $40 \mathrm {~mm}$ and an outer diameter of $50 \mathrm {~mm}$. the bolt and sleeve are made of a 36 steel and are secured to the rigid plates as shown.

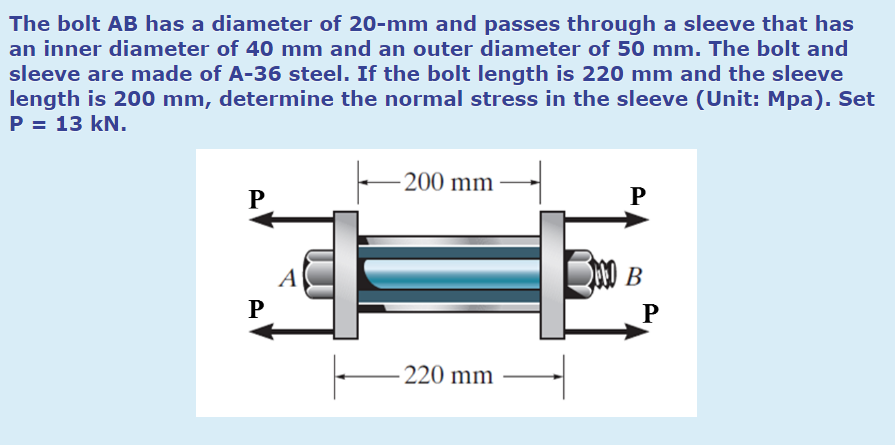

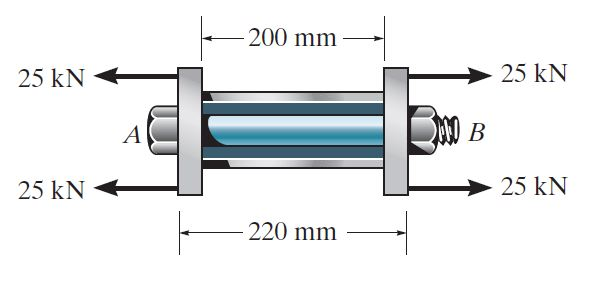

Solved The Bolt Has A Diameter Of 20 Mm And Passes Through Chegg The bolt has a diameter of 20mm 20 m m and passes through a tube that has an inner diameter of 50mm 50 m m and an outer diameter of 60mm 60 m m. if the bolt and tube are made of a 36 steel, determine the normal stress in the tube and bolt when a force of 40kn 40 k n is applied to the bolt. The bolt ab has a diameter of 20 mm and passes through a sleeve that has an inner diameter of 40 mm and an outer diameter of 50 mm. the bolt and sleeve are made of a 36 steel and are secured to the rigid brackets as shown. if the bolt length is 220 mm and the sleeve length is 200 mm, determine the tension in the bolt when a force of 50 kn is applied to the brackets. transcribed image text 200. 2.2 a 15 mm diameter steel bolt passes through two rigid plates, each 25 mm thick. the screw thread has a pitch of 1 mm. determine (a) the direct stress induced in the bolt if the nut is tightened by one fifteenth of a turn; and (b) the average shear stress in the bolt head assuming shearing on a cylindrical surface of the same diameter as the bolt (e=200gpa). A steel bolt of 20 mm diameter passes centrally through a copper tube of internal diameter 28 mm and external diameter 40 mm. the length of whole assembly is 600 mm. after tight fitting of the assembly, the nut is over tightened by quarter of a turn. what are the stresses introduced in the bolt and tube, if pitch of nut is 2 mm? take es = 2 × 105 n mm2 and ec = 1.2 × 105 n mm2 .

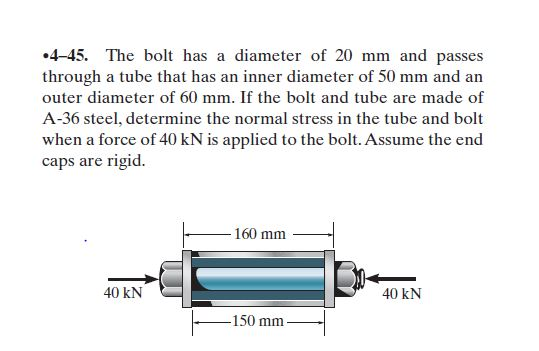

Solved The Bolt Has A Diameter Of 20mm ï And Passes Through A Chegg 2.2 a 15 mm diameter steel bolt passes through two rigid plates, each 25 mm thick. the screw thread has a pitch of 1 mm. determine (a) the direct stress induced in the bolt if the nut is tightened by one fifteenth of a turn; and (b) the average shear stress in the bolt head assuming shearing on a cylindrical surface of the same diameter as the bolt (e=200gpa). A steel bolt of 20 mm diameter passes centrally through a copper tube of internal diameter 28 mm and external diameter 40 mm. the length of whole assembly is 600 mm. after tight fitting of the assembly, the nut is over tightened by quarter of a turn. what are the stresses introduced in the bolt and tube, if pitch of nut is 2 mm? take es = 2 × 105 n mm2 and ec = 1.2 × 105 n mm2 . The bolt has a diameter of 20 mm and passes through a tube that has an inner diameter of 50 mm and an outer diameter of 60 mm. if the bolt and tube are made of a 36 steel, determine the normal stress in the tube and bolt when a force of 40 kn is applied to the bolt. assume the end caps are rigid. The bolt has a diameter of 20 (mm) and passes through a tube that has an inner diameter of 50 (mm) and an outer diameter of 60 (mm). if the bolt and tube are made of a 36 steel, determine the normal stress in the tube and bolt when a force of 40 (kn) is applied to the bolt. assume the end caps are rigid.

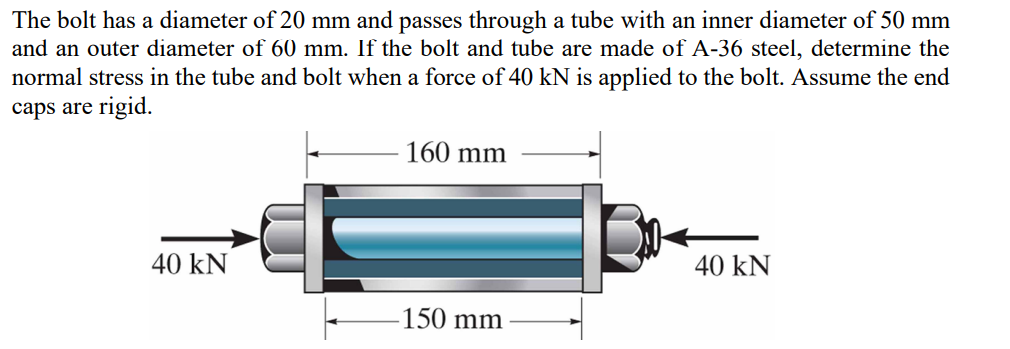

Solved The Bolt Has A Diameter Of 20 Mm And Passes Through A Chegg The bolt has a diameter of 20 mm and passes through a tube that has an inner diameter of 50 mm and an outer diameter of 60 mm. if the bolt and tube are made of a 36 steel, determine the normal stress in the tube and bolt when a force of 40 kn is applied to the bolt. assume the end caps are rigid. The bolt has a diameter of 20 (mm) and passes through a tube that has an inner diameter of 50 (mm) and an outer diameter of 60 (mm). if the bolt and tube are made of a 36 steel, determine the normal stress in the tube and bolt when a force of 40 (kn) is applied to the bolt. assume the end caps are rigid.
